RX10 Telemetry Receiver

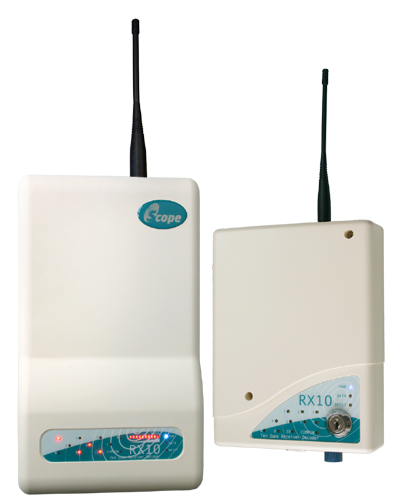

Introducing our most versatile receivers to date,the RX10 range is compatible with all our POCSAG transmitters and is completely programmable using PC based configuration software

Relay And Serial Outputs

The 10 zones each have an individual relay output which can be set for latching, momentary or change of state. There is also a configurable common relay.



If 10 zones aren’t enough then multiple expansion modules can be added (PZ10) each providing another 10 zones.



There is also a programmable RS232 serial output.

Scope Communications UK Ltd

Main Features Include





  • Compatibility: Can be used with all Scope POCSAG transmitters
  • 10 Zones: 10 individual zone relays + common activity relay and sounder
  • Versatile Zone Configuration: Each zone individually switchable. All relays can be programmed for latching or momentary operation
  • Serial Port: RS232 serial port for data logging or repeater functions
  • Fully Programmable: All functions are programmable with PC based configuration software
  • Receiver Identity Codes: Responds to transmitted RIC’s (receiver identity codes) or ranges of RIC’s
  • Global Reset: By keyswitch or transmitted RIC
  • Supervised: ‘transmitter in service’ facility
  • Signal Strength Meter (not Lite version)

Power Input

Frequency Range (programmable)​

DC version: 12V to 13.8V DC max @0.7A
AC version: 90 to 230V AC 0.5A​

450MHz – 464MHz​

RX10T

Performance​

Signal Format​

Category 1 blocking, EN 300 220-1​

POCSAG FSK NRZ (normal or inverted)​

Power Input​

Power Consumption​

Signal Format​

Frequency Range (programmable)​

12V to 13.8V DC max @ 0.7A​

Standby: 50mA
Active (serial) : 73mA
Active (all relays+sounder): 340mA​

POCSAG FSK NRZ (normal or inverted)​

430MHz – 470MHz​

RX10LT

Sensitivity​

-117dBm for 1% error​

Scope’s policy is one of continuous development and specifications are subject to change without prior notice

Specifications​

Performance​

Blocking​

Category 1.5, EN 300 220-1​

>55 dB at 2MHz & 10MHz​

RX10 Telemetry Receiver

Relay Contacts Max Rating​

0.5A @ 125V AC
1A @ 60V DC​

Serial Port​

RS232. Baud rate 1200 to 115200​

Footprint​

(H)* 328 x (W) 190 x (D) 78 mm
* (496mm with 14BNC antenna)

Relay Contact max rating​

0.5A @ 125V AC
1A @ 60V DC​

Serial Port​

(H)* 185 x (W) 140 x (D) 42 mm
[* 335 mm with RS232
1200 to 115200 baud N81 antenna]

Footprint​

(H)* 185 x (W) 140 x (D) 42 mm
* 335 mm with 14BNC antenna
